Features:

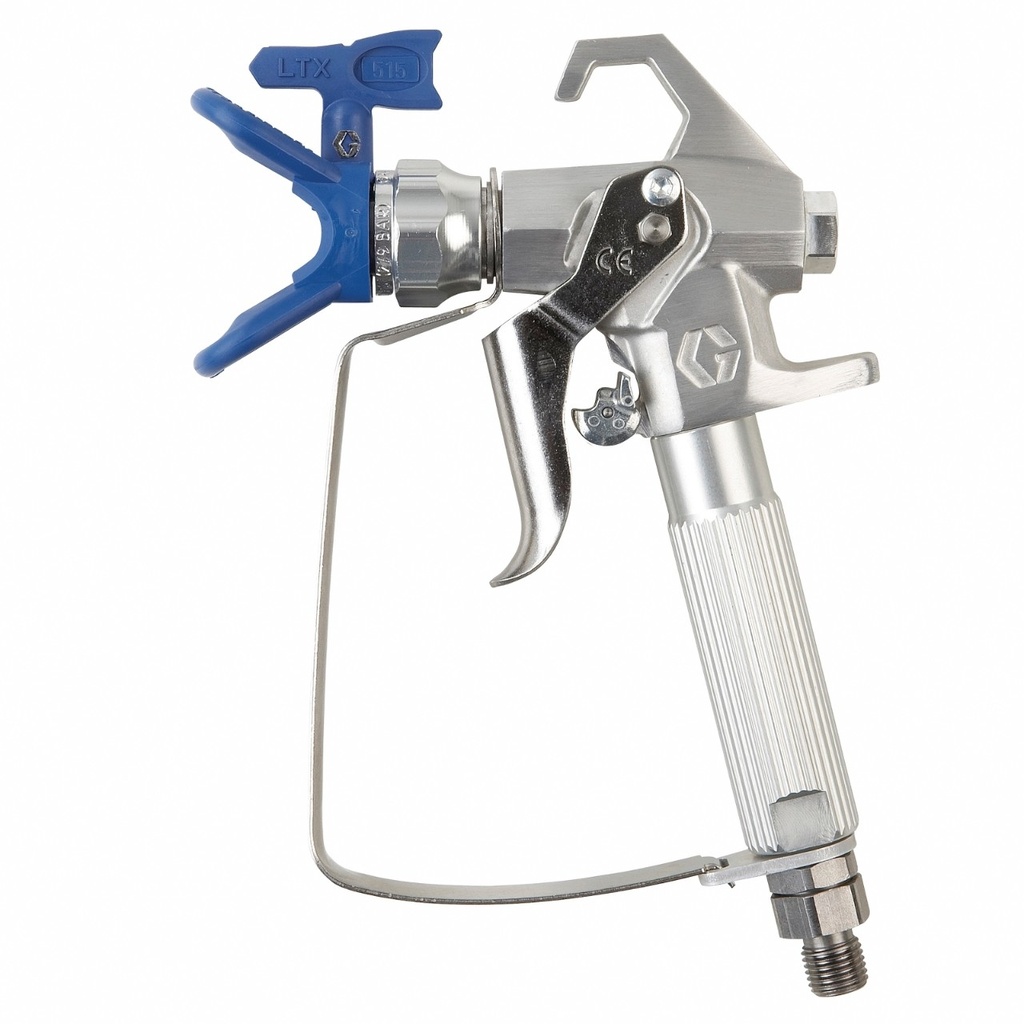

The Contractor FTx airless spray gun is the budget-friendly option for daily use and provides the reliability and performance needed to achieve a professional finish. It includes a 2-finger trigger and a RAC X 515 SwitchTip with guard.
- Exclusive FlexSeal needle
- The patented fully enclosed design eliminates needle exposure to fluid, extends needle life by 70%, and ensures consistent needle shut-off.
- The fluid presses the seal to quickly shut off the needle and reduce spitting.
- The spring is located outside the fluid path for improved flow.
- Helps eliminate packing and slow needle shut-off.
- Reduced gun spitting
- The repositioned seat is closer to the tip, eliminating 60% of the dead space.
- Less paint remaining between the needle and the tip results in reduced spitting.
- Ergonomic design
- The contoured handle provides maximum control and comfort.
- The removable trigger guard swings away from the gun handle for easy filter access.
- The lightweight design reduces operator fatigue.
- Trigger lock
- Trigger activation with a light, smooth pull and an easy safety lock that engages with your thumb.
- Modular needle design
- Simply remove the trigger cross pin and unscrew the front housing to change the needle.
- EasyGlide swivel
- The exclusive dual-seat swivel design reduces sealing friction under pressure, making this the best swivel on the market!
- Easy Out gun filter
- Filters from the inside out to prevent filter collapse.
- Interchangeable with all Contractor series guns
Technical Specifications
Gun activation:
Manual option
Includes:
- RAC X 515 SwitchTip
- RAC X HandTite guard
Model:
Contractor FTx
Gun weight (oz):
23.8
Maximum fluid pressure (MPa):
24.8
Maximum fluid pressure (bar):
248
Maximum fluid pressure (kPa):
24800
Maximum fluid pressure (psi):
3600
Trigger lock:
Locking type
Series:
Airless Spray Gun
Component A inlet size (in):
1/4
Fluid orifice size (cm):
0.318
Fluid orifice size (in):
0.125
Fluid orifice size (mm):
3.17
Type:
Spray gun
Component type:
Single component
Trigger type:
Mechanical
Gun type:
Airless gun
Product type:
Spray gun
Spray type:
Airless
Component A inlet thread type:
NPSM
