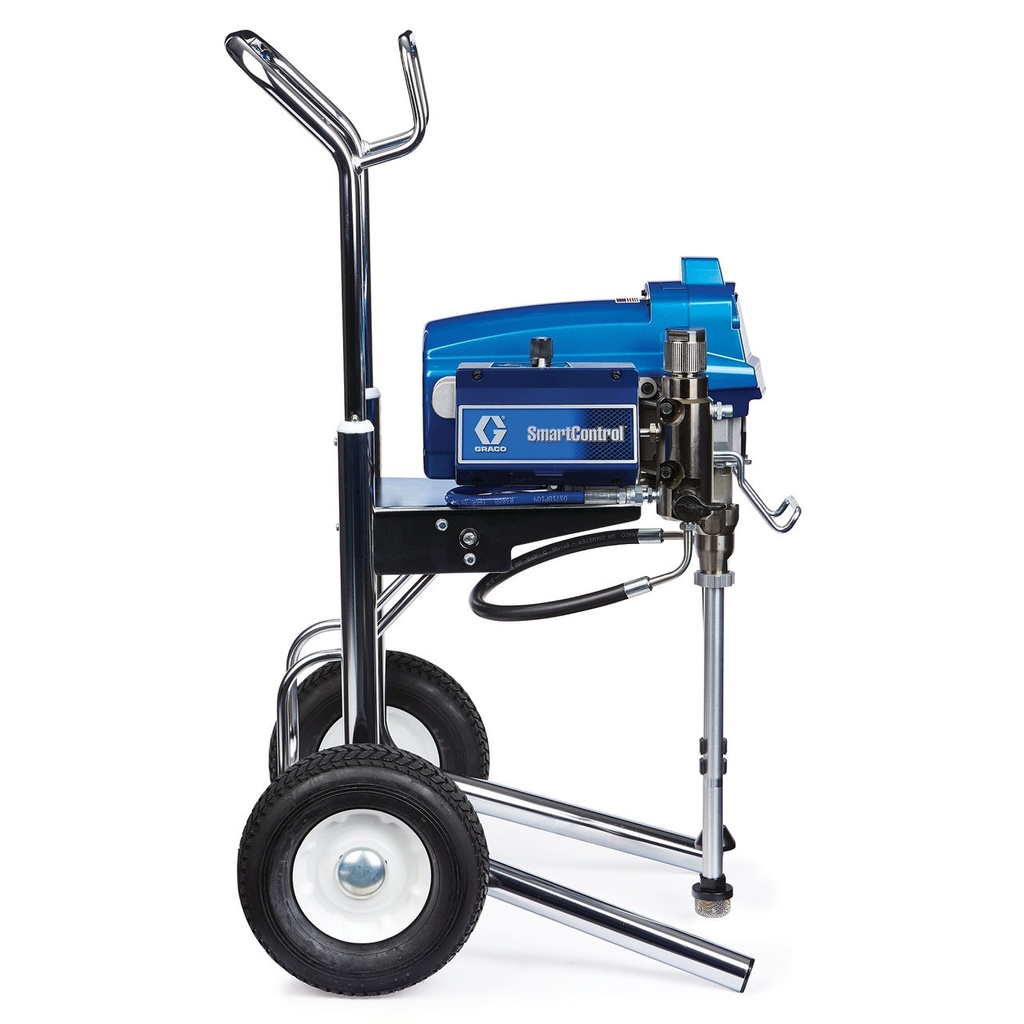

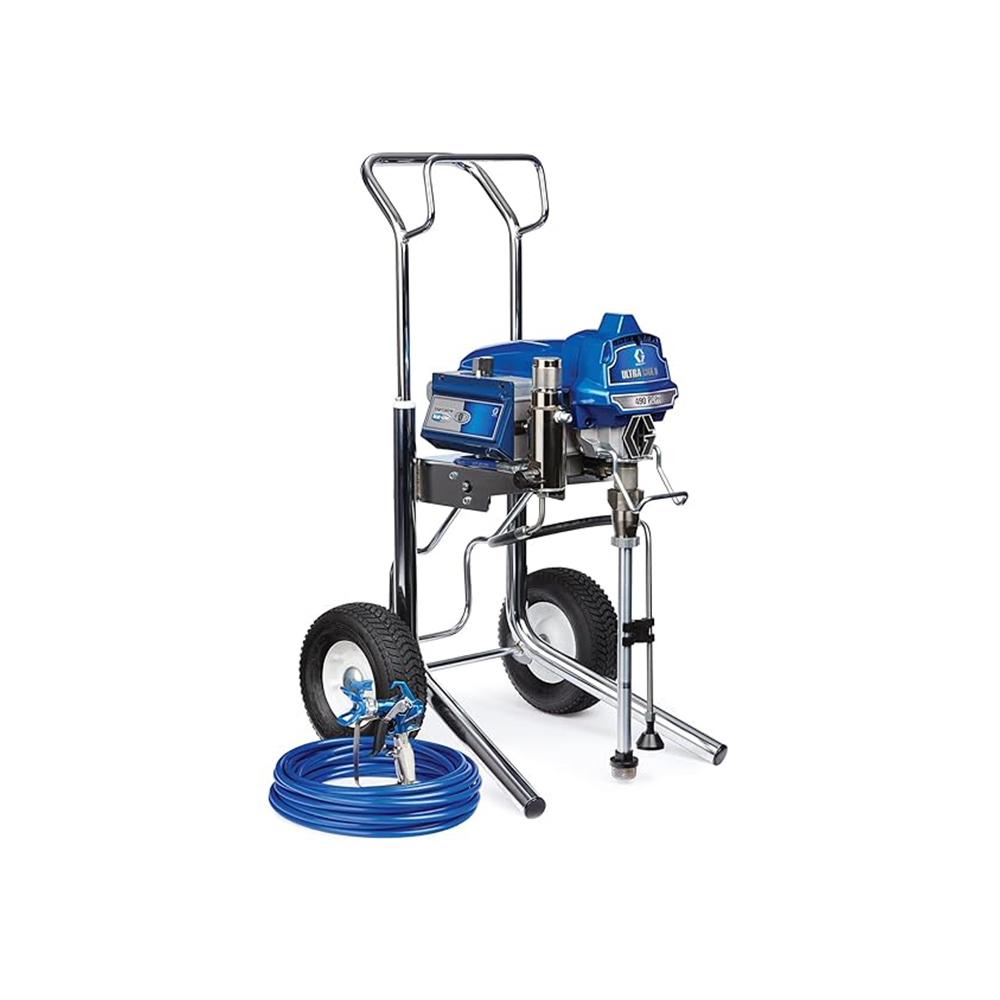

Ultra Max Ii 490 Pc Pro Hi-Boy 110V With Bluelink & Pc Contractor Gun
Part number: 17E854
The Ultra Max II 490 PC Pro airless sprayer is the ideal step forward for the professional contractor seeking superior performance and features in a compact electric sprayer. The MaxPower brushless motor delivers more torque, and SmartControl 3.0 adjusts the speed...
Do you have questions about this product?
Are you evaluating our products and need advice before making a purchase?
Features:
The Ultra Max II 490 PC Pro airless sprayer is the ideal step forward for the professional contractor seeking superior performance and features in a compact electric sprayer. The MaxPower brushless motor delivers more torque, and SmartControl 3.0 adjusts the motor speed to suit your spraying needs.
Greater productivity. Unmatched reliability. Graco's medium electric airless sprayers allow you to get more work done in a day with higher flow and output.
- Durable Endurance Chromex piston pump
- Lasts twice as long as the next leading brand
- Long-lasting V-Max Blue packings, Chromex stem, and hardened stainless steel cylinder
- Faster cleaning with the QuikAccess intake valve
- SmartControl 3.0
- Greater spray uniformity
- Constantly monitors performance and adjusts motor speed to suit your spraying needs.
- Measures sprayer gallons, hours, and pressure.
- Provides assistance and diagnostic messages.
- BlueLink job and sprayer management system
- Optimize your business
- Track all sprayers: Exact location and productivity per hour
- Know job progress: Productivity data and reports on demand from anywhere
- Maximize uptime: Set maintenance schedules, alerts, and job site notes
- More information: graco.com/BlueLink
- MaxPower motor
- Proven power and performance for all painting applications
- High-torque brushless design with lifetime warranty
- Advantage impeller
- The most durable transmission
- Hardened steel gears provide extremely quiet operation and a lifetime warranty.
- ProConnect one-piece pump replacement system
- Eliminate costly downtime
- Pump changes in minutes – no tools, pins, or parts to lose
- FastFlush high-flow cleaning system
- Spray more and clean less
- Cleaning is four times faster using half the water
- Easy Out pump filter
- Easy maintenance and fewer clogs
- The exclusive inside-out filtering process ensures a quality finish
- Durable cart design with foot support
- Supports tough environments
- Design allows easy bucket changes by a single person
- The retractable handle also serves to store the hose
- Foot support for easy one-person bucket changes
- Contractor PC spray gun
- Comfort and control all day long
- The lightest gun in its class
- Up to 50% less trigger pull force
- Adjustable E-Z Fit trigger length
- Complete gun rebuild in seconds with the ProConnect cartridge
- More information at: graco.com/ContractorPC
Technical Specifications
Total height (cm):
97.2
Total height (mm):
972
Total width (cm):
52.1
Total width (mm):
521
Features:
- Endurance Chromex pump
- SmartControl 3.0
- MaxPower brushless
- Advantage impeller
- ProConnect
- FastFlush
- Filtro Easy Out
- Contractor PC gun
Maximum flow rate (L/min):
2,0
Frame configuration:
Hi-Boy
Hose inlet diameter (cm):
0.635
Hose inlet diameter (mm):
6.35
Hose inlet diameter (in):
1/4
Phase :
1
Frequency (Hz):
50/60
Power source:
Electric
Total length (cm):
59.1
Total length (mm):
591
Compatible material:
- Lacquer
- Stains
- Interior latex
- Exterior latex
- Enamels
- Acrylics
- Oil-based primer
Wet material:
- Acetal
- Aluminum
- Fluoroelastomer
- Leather
- Nylon
- PTFE
- Polyethylene
- Stainless steel
- Tungsten carbide
- UHMWPE
- Urethane
- Galvanized carbon steel
- Nickel-plated carbon steel
Model:
Ultra Max II
Maximum sound pressure level (dB(A)):
90
Number of guns:
1
Weight (kg):
30
Minimum generator power (W):
3500
Rated power (W):
746
Rated power (kW):
0.75
Maximum working pressure (MPa):
22.8
Maximum working pressure (bar):
3300
Maximum working pressure (bar):
22800
Maximum working pressure (bar):
228
Series:
490 PC Pro
Filter mesh size:
60
Fluid outlet size (mm):
6.35
Fluid outlet size (in):
1/4
Motor size (kW):
0.75
Maximum tip size 1 gun (in):
0.023
Maximum tip size (in):
0.023
Type:
Airless sprayer
Pump type:
Endurance pump
Pressure control type:
SmartControl 3.0
Pump mounting type:
ProConnect
Motor type:
MaxPower
Fluid outlet thread type:
NPSM
Voltage (V):
120
Volume per cycle (cycles/gal):
620
